Description
110° flat-fan nozzle tips for grass line marking and spraying. Turfmate uses these tips with diluted concentrate paints including Force, Define and Elements. They are also used in compatible knapsack and other sprayers.
Choose the nozzle size for your required output, operating pressure and equipment. Check the cap, seal and filter fit before ordering. The 110° marking describes the spray angle; it is not the finished line width.
Flow chart: litres per minute
Water flow per nozzle. These catalogue figures are a calibration reference, not measured paint output. Diluted paint, nozzle wear and the machine setup can change actual flow.
| Option | Tip size | 2 bar | 3 bar | 4 bar |
|---|---|---|---|---|

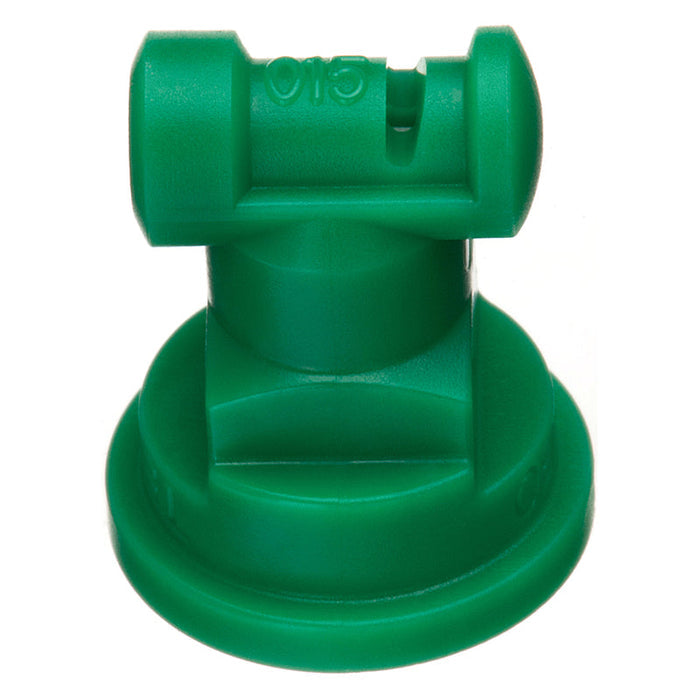

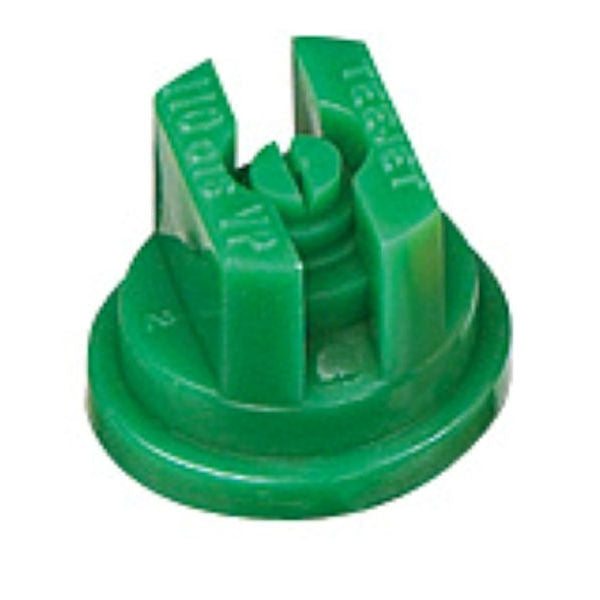

| Green | 110015 | 0.48 | 0.59 | 0.68 |

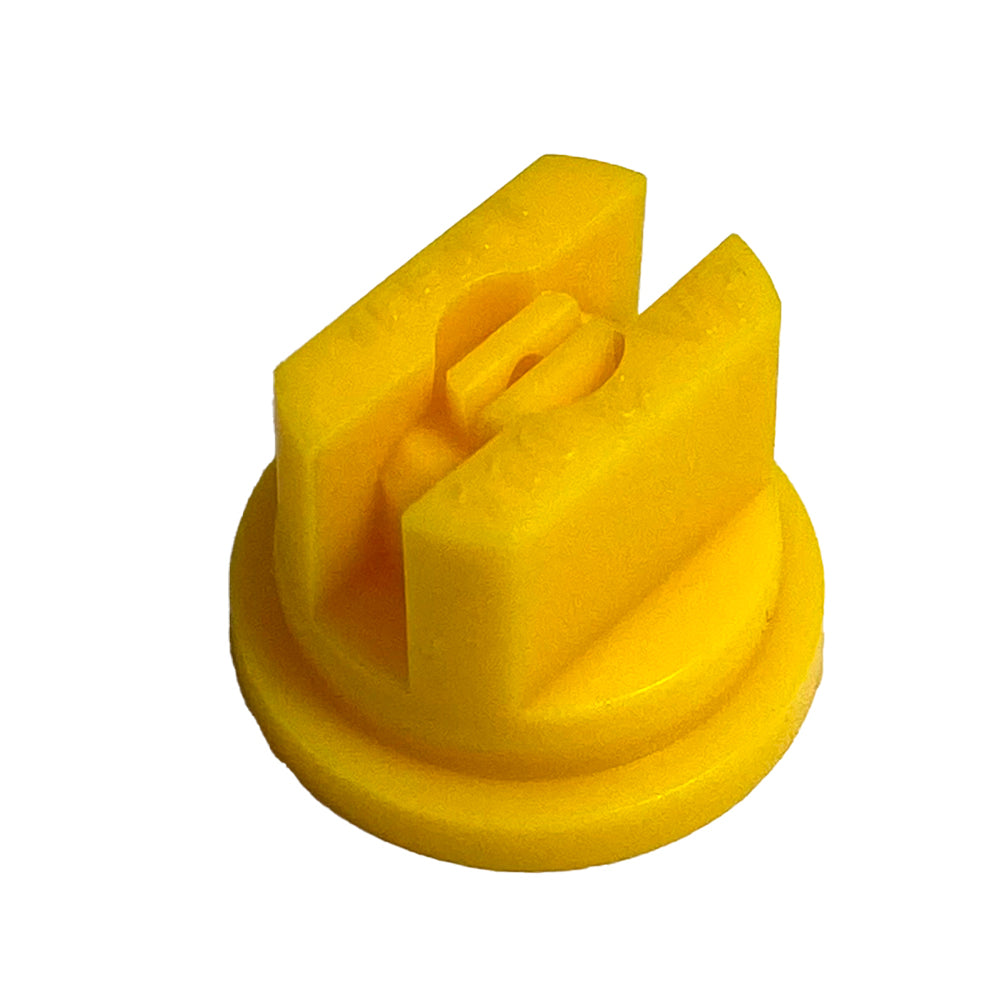

| Yellow | 11002 | 0.65 | 0.79 | 0.91 |

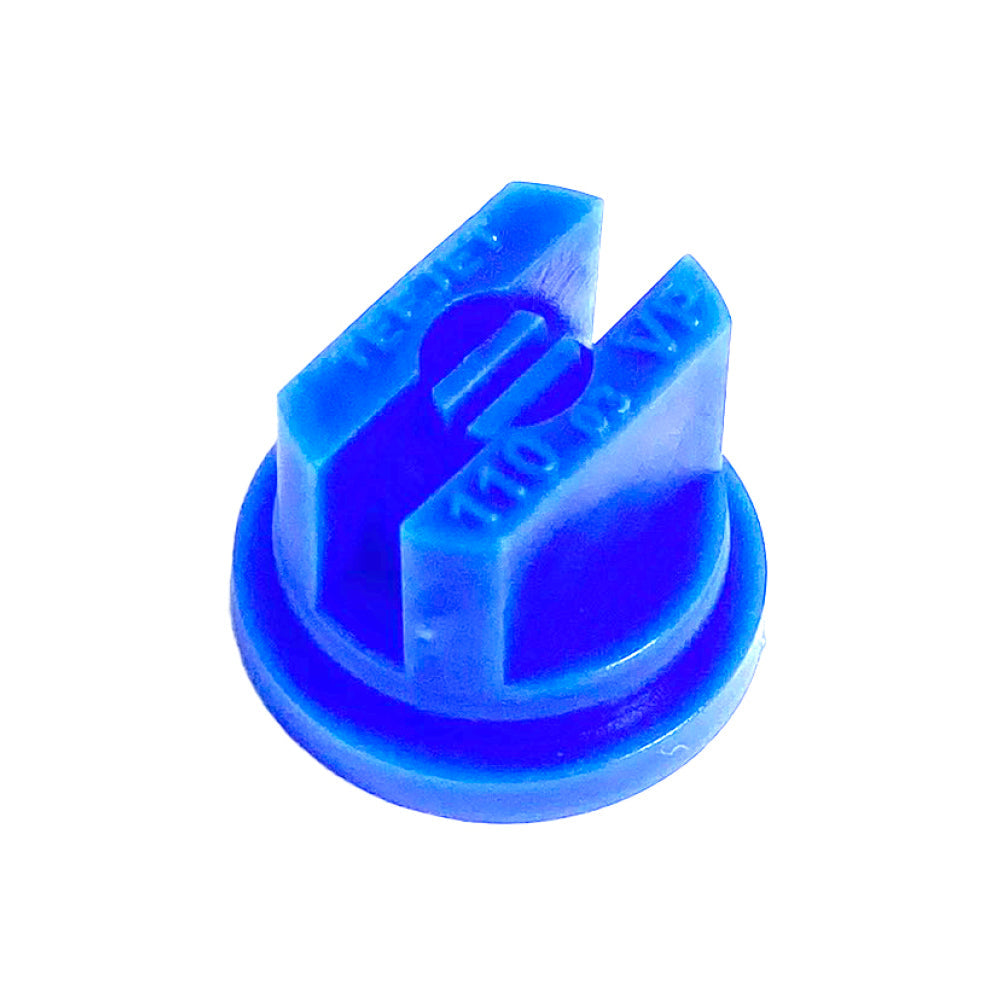

| Blue | 11003 | 0.96 | 1.18 | 1.36 |

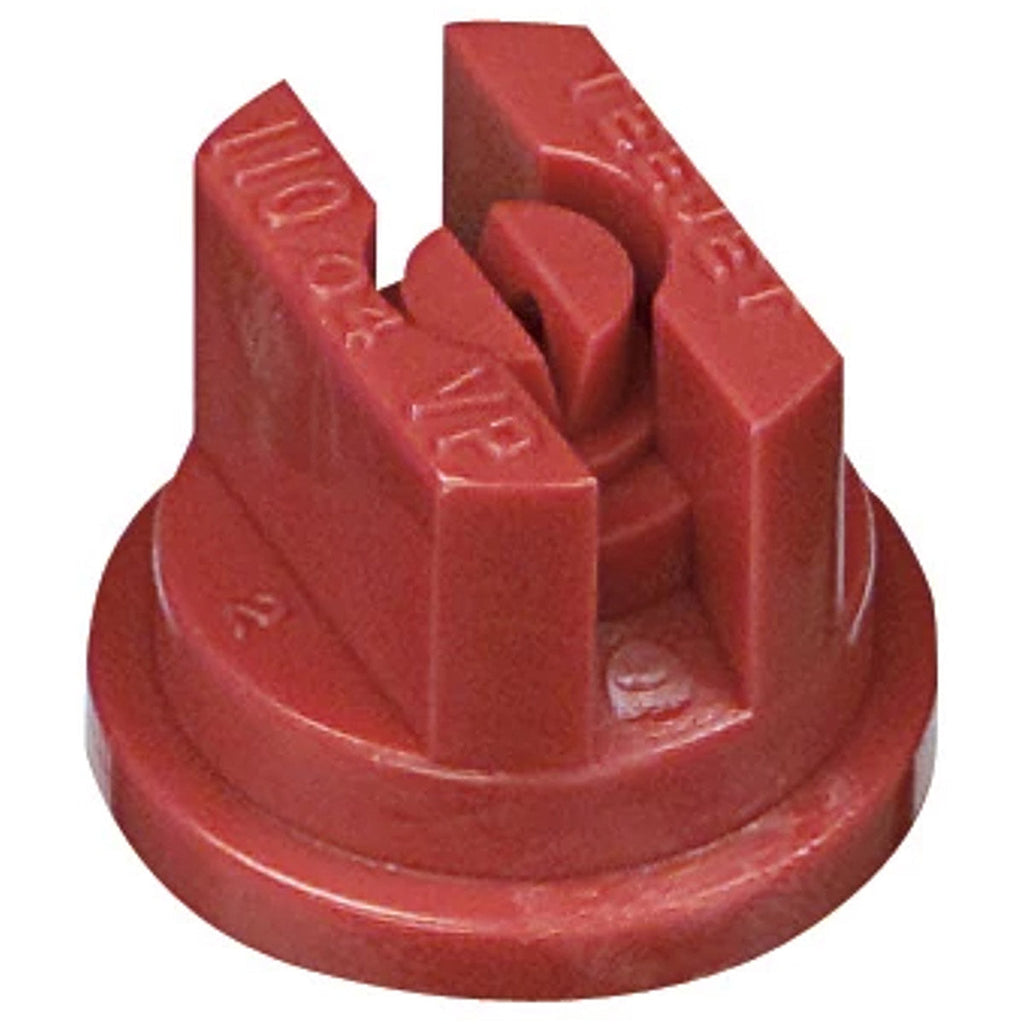

| Red | 11004 | 1.29 | 1.58 | 1.82 |

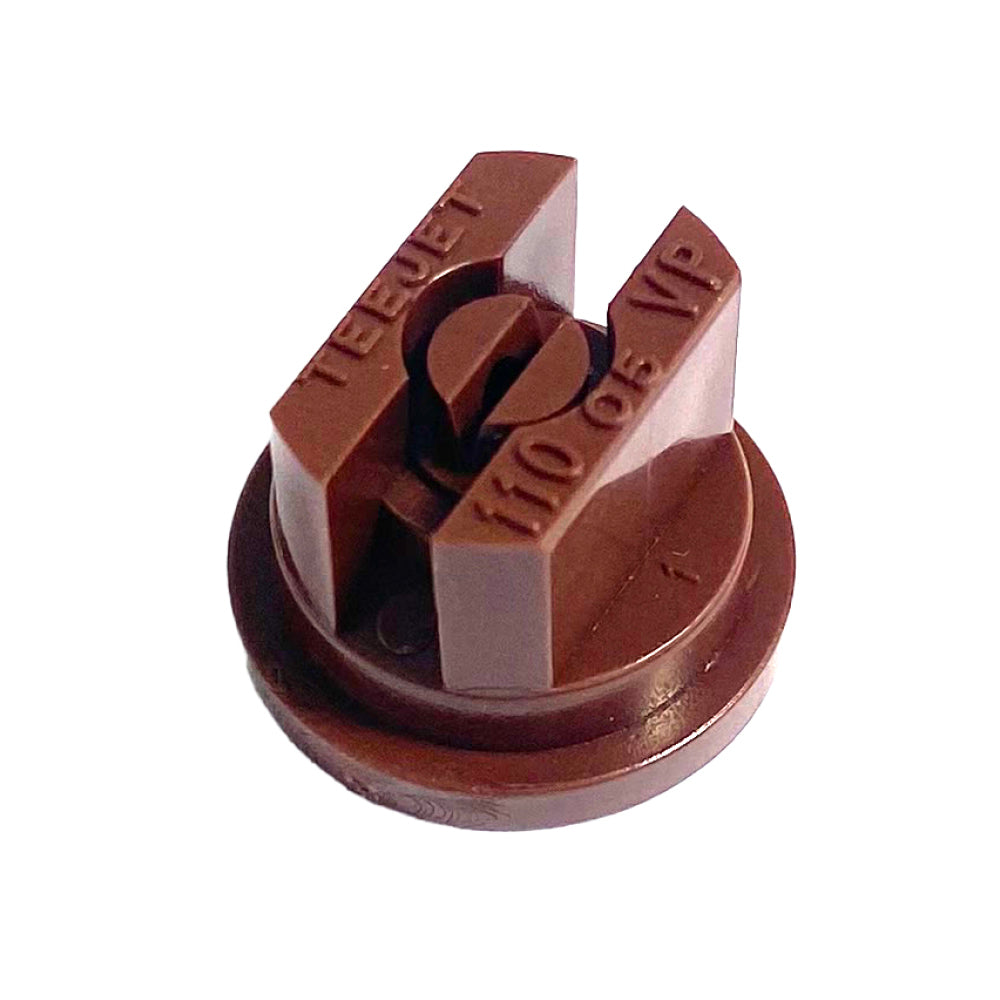

| Brown | 11005 | 1.61 | 1.97 | 2.27 |

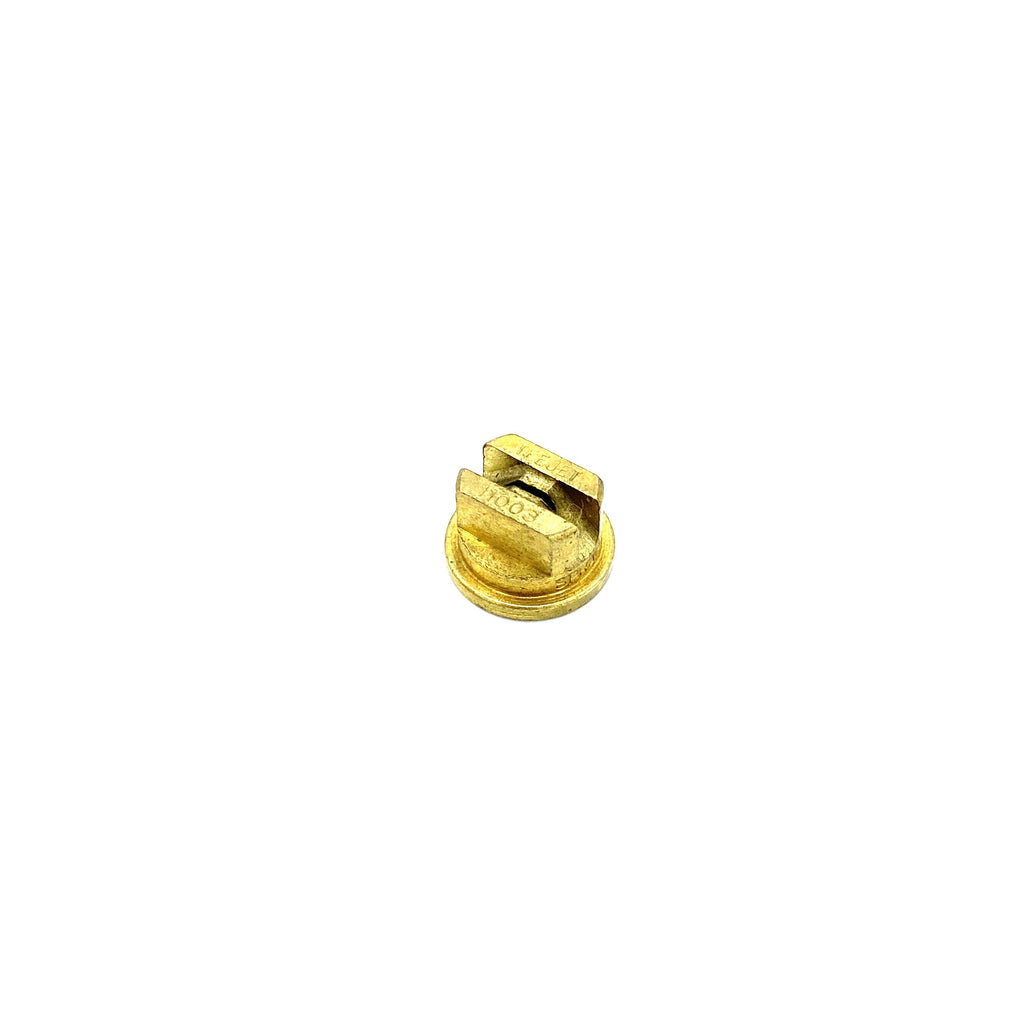

| Brass | 11003 | 0.96 | 1.18 | 1.36 |
At the same pressure, Green has the lowest output and Brown the highest of these sizes. Brass 11003 has the same nominal capacity as Blue 11003. Source: TeeJet TP VisiFlo metric capacity table. View the manufacturer’s full catalogue (PDF).
Using these tips for line marking
Dilute Force, Define or Elements to the paint’s directions, then select output to suit the machine, line width, speed and desired finish. Check flow and line quality with the actual mix before marking the whole ground. A higher-output tip applies more liquid at the same pressure; it does not automatically produce a better line.
For ready-to-use paint setups, see our hollow-cone nozzles and output guide. Confirm the fitting and operating requirements for your machine.
Using these tips for spraying
Select tip size, pressure and droplet requirements to match the product label and application. Calibrate with clean water before spraying and follow the equipment and chemical directions. Colour identifies capacity; it does not establish suitability for every chemical or job.
